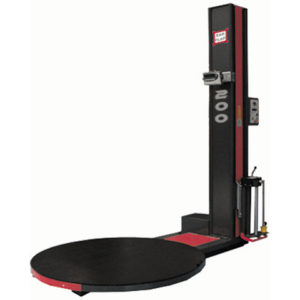

M200

Technical features

• Hinged mast
• Powered film carriage with variable speed, placed sideways
• Adjustable mechanical film brake with foot trapping detector
• Automatic load height detection by photocell
• 1.650 mm diameter turntable, 10 mm thick plate
• Soft start/stop by frequency inverter with return to start position
• 4 wrapping programs: Single, Cross wrap, Cross-plus, Full
• Wrapping cycles counter
• Independently adjustable top & bottom reinforcement wraps
• PLC controlled, with display control panel
• Reinforcement wraps at any point in the cycle
• Ergonomically designed control panel
• Single phase, 220V, power supply
• Variable output, depending on load features and operator ability
• Installed power: 0,5 kw

Standard pallet features (others on demand)

• Type of wrapping: Vertical
• Maximum height: Up to 2.400 mm (consult about other heights)
• Maximum dimensions pallet and load: 1.200 x 1.100 mm (consult about other dimensions)
• Maximum weight: 2.000 kg

Options and accessories

1. Weighing System
2. Turntable accessing ramp
3. Embedding frame
4. Scale with display
5. Direct film brake
6. Mechanical film brake (std.)
7. Electromagnetic film brake
8. Powered film pre-stretch
9. Twin film holder
10. Powered top platen
11. Special top holder for flat loads

“A la carte” machine

• Special heights
• Special platforms
• Special environments (INOX, ATEX, below 0ºC)
