Checkweighers – Series S

The "S Series" includes modular checkweighers that meet the current requirements of the pharmaceutical industry, especially the GMP regulations and the stringent quality control reference standards.

The "S Series" checkweighers can be integrated with :

• Datamatrix one-dimensional or two-dimensional marking systems
• Display system for monitoring the package and marking

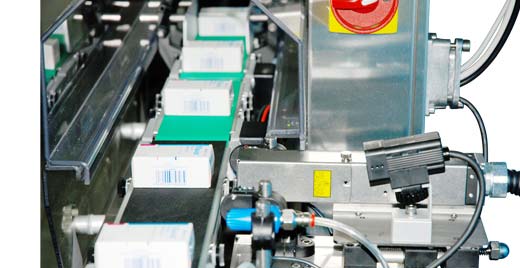

• Multiple ejector systems with strict separation of the different products rejected.

The Checkweighers "S Series" range of measuring instruments has been desinged using sturdy, tried-and-tested measuring technology to meet the industry's growing demands, with special attention to the specific requirements of each manufacturing sector.

The creation of customised solution designed to suit the size and shape of the products to be conveyed and measured ensures excellent results and full integration into even the most complex production lines.

Various different configurations are available with 1 to 5 conveyor belts and width measurements ranging from 45mm to 160mm, for conveying bottles, tubes, blister packs and boxes.

Series S Features :

Active Feedback

• Prevent unwanted over and underfills through proactive feedback
• Save product and money with accurate auto tuning

Conveyor belts

• Widths (mm): 60 / 90 / 110 / 160
• Lengths (mm): 100 / 150 / 200 / 250 / 315
• Flat "food" belt
• No tools needed for release

Construction and finish

• 304 stainless steel construction
• IP54 protection class
• Heights between 500 and 1.400 mm

Weighing and resolution

• Max. weight: 300 g / 600 g / 1.500 g
• Division "e": 0.1 g / 0.2 g / 0.5 g
• up to 400 weighing per minute

Rejection options

• Pneumatic pusher
• Air blast

General Features :

Motors

• Low voltage and current consumption
• 50, 100, 200 W servomotors
• Brush or brushless
• up to 160 meters/min.

Feeding and consumption

• Supply voltage L1, N, PE, 230 V (+10% / -15%)
• Air supply 3 to 6 bar
• Operating temperature 0 - 40 °C

Statistics and reports

• Integrated printer: customizable ticket reports of the batches
• STAT350: PC software with full batch traceability
• USB: data collect on USB key

Interface and control panel

• Keyboard-based with high contrast led display
• 7" HD color touchscreen with start and stop buttons
• 10" Wide color touchscreen with advanced features
• Available in many languages such as English, German, Italian, French, Spanish
• Up to 100 program in memory
• Rapid keys for quick and easy changes

Data connections

• RS232 serial COM
• Ethernet
• USB data key
